800G PAM4 Series (200G per lane)

Classification：800G PAM4 (200G per lane) Series
Number of visits：second
Date of issue：2026-03-17 13:52:21

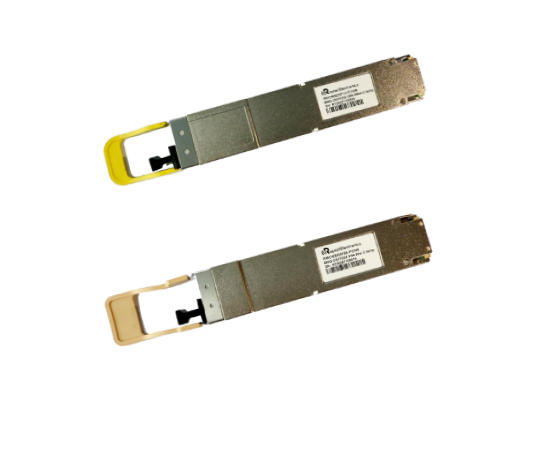

Raytel 800G PAM4 series transceivers are designed for high speed data connection ,such as Server to Leaf switch or Leaf to Spine switch in AI datacenter , switch to switch in High Performance Computing etc. The 800G VR4 PAM4 transceiver are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane. The Optical interface is MPO-12 APC. The 800G DR4 PAM4 series are based on SiP (Silicon Photonics) technology ,There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane . The Optical interface is MPO-12 APC.

online inquiry

¨ 4 independent parallel optical lanes

¨ Data rate 4x106.25GBaud/s PAM4

¨ Support 4x200G

¨ 850nm VCSEL/PD based technology for 800G VR4

¨ SiP based technology for 800G DR4

¨ MPO-12 APC Optical receptacle

¨ Positive power supply lines: 3.3 V

¨ Low power consumption

¨ CMIS 5.0 compliance

¨ ROHS 2.0 compliance
